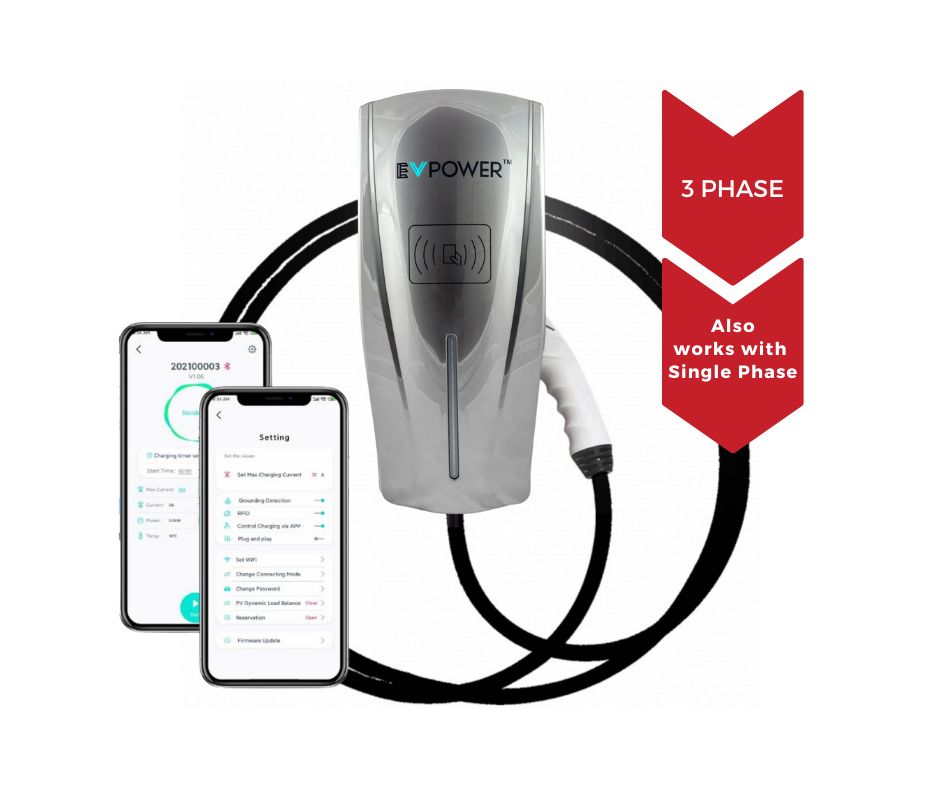

BCP Smart Tethered Type 2 (6m) DLB Wall Charger 32A 1P/3P (Load Bal)

*Please call us to order Three phase but will work on single phase. Adjustable output from 6 Amp – 32 Amp, the 22kW BCP Wall Charger can be either wall-mounted or pile mounted. Features a Type 2 lead permanently attached suitable for Type 2 (ex-UK/NZ new) EV/PHEV.  You can use single or three phase power and access solar supply. EV Charging is super easy with a tethered cable, no more hunting around for your Type 2 charging lead. Includes 6mA DC Detection, no requirement for RCD Type B at installation. Note: Electrician will need to wire in an isolation switch and supply RCBO at your switch board. Dynamic Load Balancing (DLB) technology: Dynamic Load Balancing is technology which will maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home overload. Simply set the Max Current Value in the Z-Box app on your smartphone and the charger will automatically adjust the current to the car. The total household current will not be overloaded due to charging. For example if you set your car to charge at 32 Amp but your household appliances are using 45 Amp, then your car will only charge at 15 Amp (given 63 Amp is the usual supply by your power provider). 1 x Type 2 cable (6m) permanently attached to the wall charger. Compatible with all Type 2 EVs/PHEVs. IMPORTANT This product must be installed by a registered, qualified electrician. Please refer to our T&C’s. SDoC available contact us for a copy. RFID swipecards (included) allows only authorised users to gain access to the charger. If you don’t know what Type your EV or PHEV is please call us. An easy way to tell is to compare the charging port on your vehicle with the picture of a Type 2 port below.   DIMENSIONS: 7kg 380mm Hx 169mm W x 201/159 mm D SPECIFICATIONS: 3 phase or single phase. Built-in over-voltage and under-voltage protection(U>264V or U<187V) Over- current protection, over temperature protection, imperfect earth detection. CP abnormal signal protection and type A DC 6mA for Europe standard. Operating temperature range: -25 ℃ ~ 55 ℃. IP65 (socket IP55) protection rate – provide shelter recommended. Operating humidity range 0-95% for indoor and outdoor. Temperature sensor built-in for fire protection. Leakage test function (to ensure the normal operation of leakage protection). Automatic reset after troubleshooting. That means when a charger stops working when an anomaly is detected, the charger will periodically self- check whether the anomaly is eliminated. The charger will start to work automatically after ensure the anomaly has been eliminated. The ramp-down stop current charging mode protects the EV batteries. Rated charging current can be set according to different home load conditions. Lightning protection to ensure personal safety. Standard: EN IEC 61851-1:2019 IEC 61851-1:2017 IEC62955 Certificate: CE/CB/UKCA/SAA 3 year warranty *** Connecting multiple leads (end to end) together in order to extend the reach is dangerous. This is known as “daisy chaining” and will not charge your car. Always ask a qualified electrician to check the wiring of your home before charging any EV/PHEV using your domestic circuits. If the installation of the EV Power Wall Charger is not correct then some features of the charger or app may not work properly. There should be no components left in the box as all parts are required to ensure safety and proper function! Z-Box App for real-time data interface – view charging data, set charging current, voltage and max charging power. Choose correct DLB mode for solar (optional) Set weekly charging reservation Z-Box App for real-time data interface – view charging data, set charging current, voltage and max charging power. Connect via bluetooth or wifi Set charging timer Choose correct DLB mode for solar (optional) – requires purchase of Solar DLB box (extra cost) Set weekly charging reservation Download here from the Google Play Store
