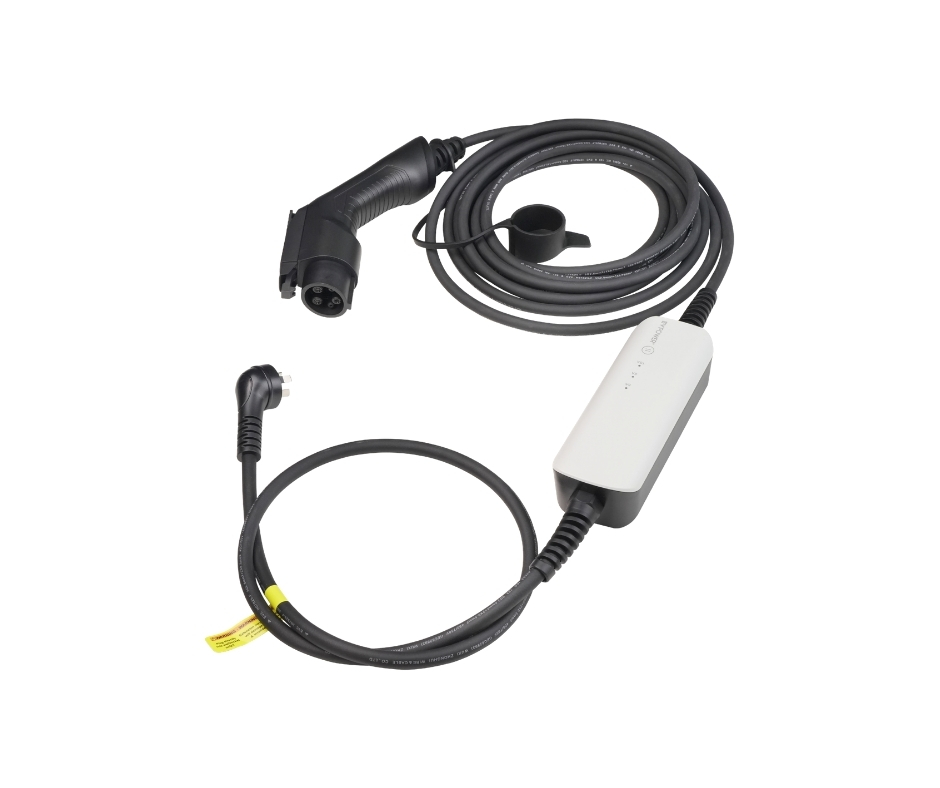

LRCD Type 1, Portable Charger Cable 10 Amp 7m

The EV Power LRCD 10 Amp Portable Charger Cable is for Ex-Japan Type 1 vehicles. This portable charging cable with a a Mode 2 10 Amp IC-CPD features adjustable current allowing you to charge your EV at a rate that suits you. The LRCD Portable Charger incorporates full safety protection, and is compliant for use in NZ. Everyday home charging Travel Backup use Compatibility This EV charging cable will only fit Type 1 EV/PHEV. if you are unsure please see our helpful page on identifying your EV here. Key Features Total cable length of 7m, (1m inlet lead 6m vehicle charging cable) Switchable between 6A, 8A, and 10A, allowing the charging current to be reduced. Perfect when using older wiring, shared circuits, or locations with limited power capacity. 6 mA DC residual direct current detection, allowing use with a standard Type A RCD where permitted. An integrated temperature sensor within the AU/NZ three-pin plug continuously monitors plug temperature during charging. If abnormal temperature rise is detected, charging is automatically interrupted to reduce the risk of overheating. IEC 62752 requirements met for portable EV charging equipment. Compact in-line control box. Status indication lights Specifications Input voltage: 230V AC Single-phase Selectable current: 6/ 8 / 10 Amps Maximum output power: 2.3 kW (at 10A) Charging mode: Mode 2 (IC-CPD) Vehicle connector: Type 1 (SAE J1772) Residual current protection: 6 mA DC detection (RDCDD) Plug temperature monitoring: Integrated sensor at AU/NZ three-pin plug Compliance: IEC 62752 Total cable length: 7m Inlet cable length: 1m Vehicle cable length: 6m IP65 Add a wall bracket to your order, click here to view online. Warranty Two year warranty
